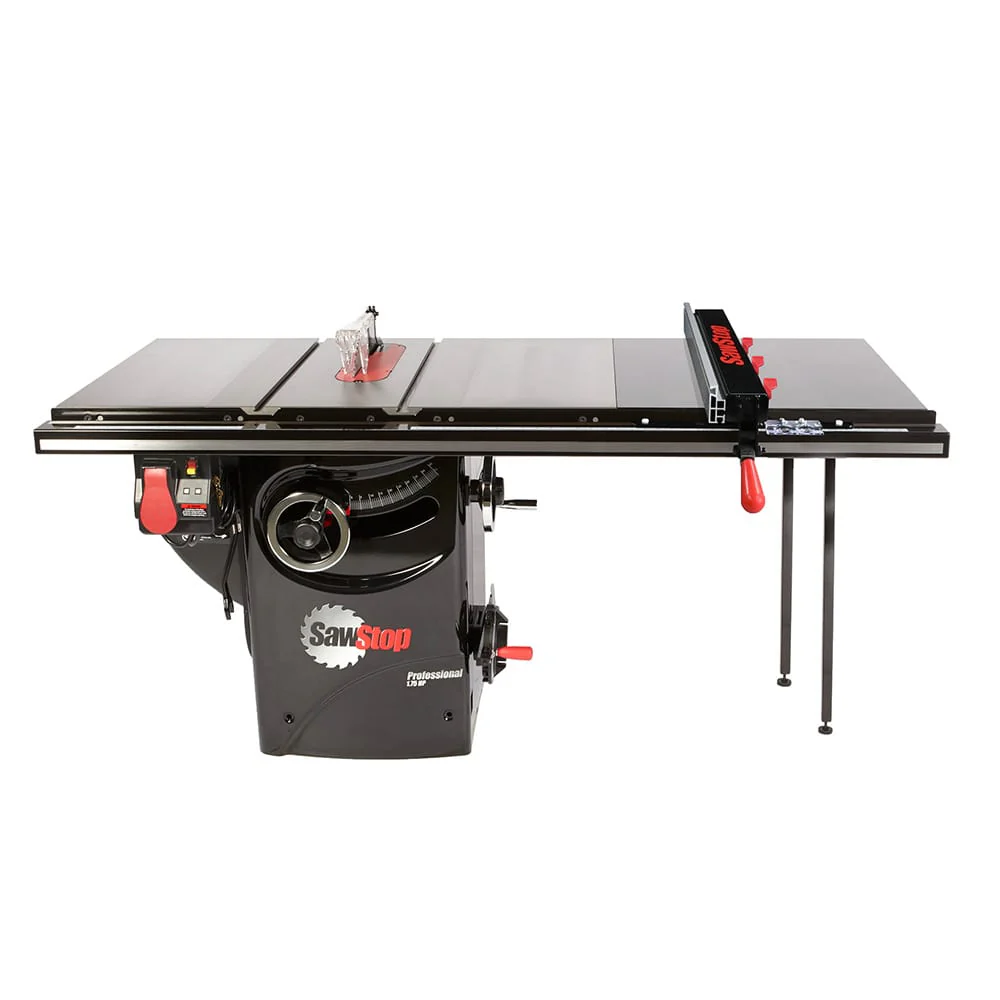

The SawStop® 1-3/4 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 110V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Micro Blade Guard
• 36" Professional T-Glide Advance Fence System provides smooth operation and precise measurement

Specifications:

• Product Type: Cast Iron Table Saw
• Overall Saw Dimensions (W x D x H): 69-1/8" x 33" x 34"
• Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
• Cast-Iron Table (W x D): 20" x 27"
• Cast-Iron Table Size with Extension Wings (W x D): 44" x 27"
• Motor: 1 3/4 HP, 1-Phase, 110V, 14A
• Weight: 408 lbs.
• Blade: 40-tooth, professional-grade, 5/8" arbor
• Blade Diameter: 10"
• Blade Tilt: left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078"
• Maximum Depth of Cut - Blade at 0º: 3-1/8"
• Maximum Depth of Cut - Blade at 45º: 2-1/4"
• Maximum Rip - Left of the Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Maximum Dado Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade - Maximum Elevation: 10-1/4"
• Table Behind the Blade - Maximum Elevation: 7-1/2"
• Table Flatness Measured Diagonally: 0.010" maximum gap
• Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2 mm)
• Blade Guard: polycarbonate, extends only 5/8" to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

• (1) SawStop 1.75 HP PCS™ Table Saw Body
• (1) Professional Series 36" Extension Table
• (1) T-Glide Pro Advance Fence
• (1) T-Glide Pro 36" Rails
